NCV3030BDR2G
NCV3030 - SYNCHRONOUS PWM CONTROManufacturer: onsemi
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-SOIC
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

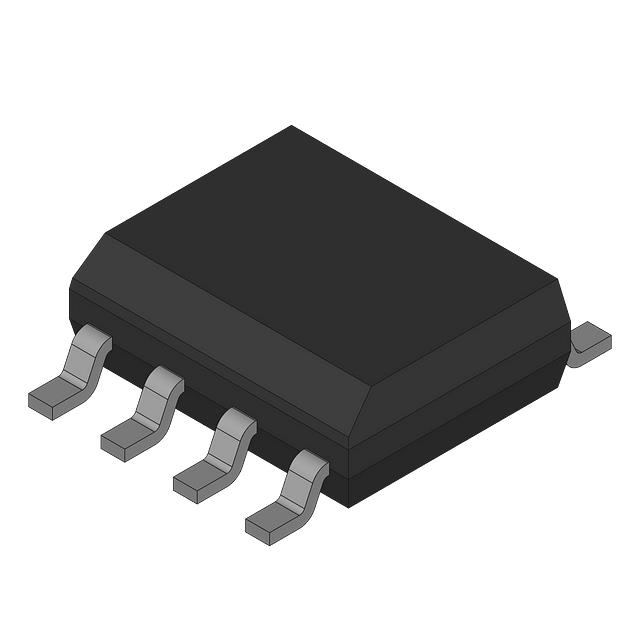

| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 2.4MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.7V ~ 28V |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | Yes |
| Control Features | - |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 80% |
| Clock Sync | No |
| Grade | Automotive |
| Number of Outputs | 1 |
| Qualification | AEC-Q100 |
Request a Quote
