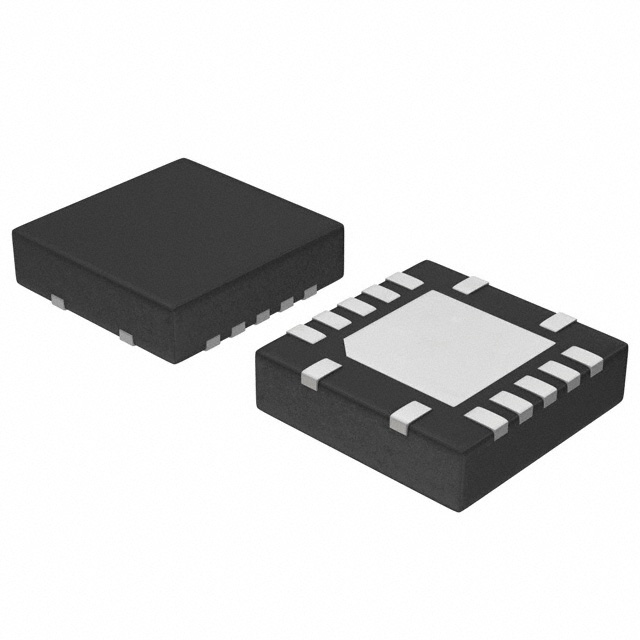

NCP5217AMNTXG
IC REG CTRLR BUCK 14-QFNManufacturer: onsemi
Categories: DC DC Switching Controllers
Quality Control: Learn More
The onsemi NCP5217AMNTXG is a single-phase, positive output buck DC-DC controller IC. This component utilizes a step-down topology operating at a switching frequency of 300kHz. It features an enable pin and a power good indicator for enhanced control and monitoring. The NCP5217AMNTXG supports a wide input voltage range from 4.5V to 27V and is housed in a 14-QFN (3.5x3.5) exposed pad package for surface mounting. This device is suitable for applications in consumer electronics, industrial automation, and power management systems. It includes a synchronous rectifier for improved efficiency.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 27V |
| Supplier Device Package | 14-QFN (3.5x3.5) |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Power Good |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
