NCP5212TMNTXG
IC REG CTRLR BUCK 16QFNManufacturer: onsemi
Categories: DC DC Switching Controllers
Quality Control: Learn More
The onsemi NCP5212TMNTXG is a highly efficient, single-output, synchronous buck DC-DC controller designed for step-down voltage regulation. This device operates with a switching frequency of 300kHz and features a robust duty cycle control. It supports input voltages ranging from 4.5V to 27V, making it suitable for a wide array of power supply applications. The NCP5212TMNTXG incorporates critical control features including current limit, enable functionality, and a power good indicator. Its 16-QFN (4x4) package with an exposed pad facilitates efficient heat dissipation and surface mount integration. This component is commonly employed in industrial and automotive systems requiring reliable and compact power management solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

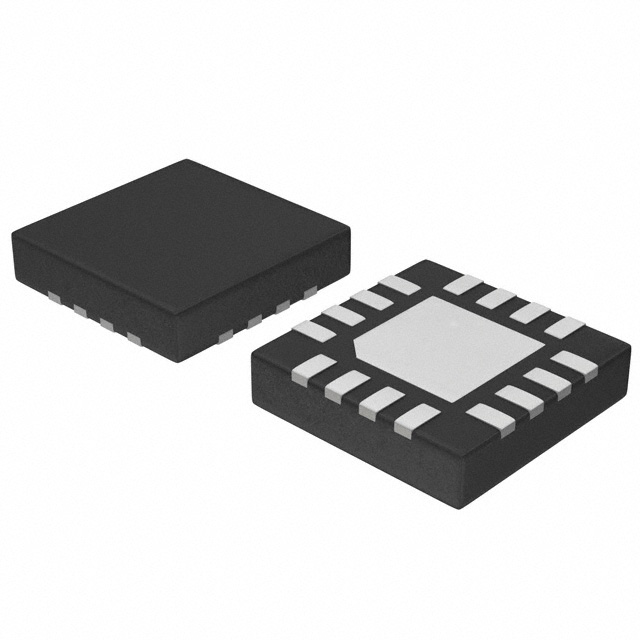

| Package / Case | 16-VQFN Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 27V |
| Supplier Device Package | 16-QFN (4x4) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Power Good |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | Yes |
| Number of Outputs | 1 |
