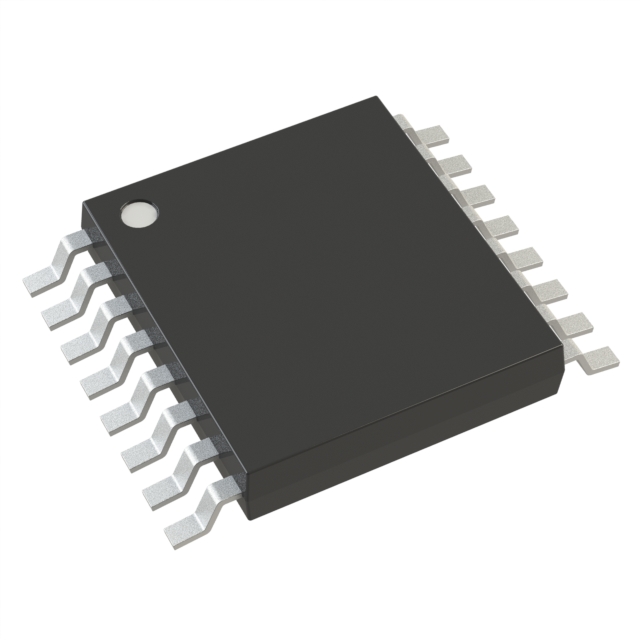

CS51022ADBR2G
IC REG CTRLR MULT TOP 16TSSOPManufacturer: onsemi
Categories: DC DC Switching Controllers
Quality Control: Learn More
The onsemi CS51022ADBR2G is a versatile DC-DC controller IC designed for single-output, positive, isolation-capable configurations. This device supports Flyback, Forward Converter, and Push-Pull topologies, enabling both step-up and step-down voltage conversion. Featuring a switching frequency of 1MHz, it incorporates essential control features such as current limiting and soft-start. The CS51022ADBR2G operates within a supply voltage range of 7.7V to 20V and is housed in a 16-TSSOP package for surface mounting. Its robust design makes it suitable for applications in power supply units, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 1MHz |
| Topology | Flyback, Forward Converter, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 7.7V ~ 20V |
| Supplier Device Package | 16-TSSOP |
| Synchronous Rectifier | No |
| Control Features | Current Limit, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | - |
| Clock Sync | No |
| Number of Outputs | 1 |
