NCS2200SN1T1
IC COMPARATOR 1 GEN PUR 5TSOPManufacturer: onsemi
Categories: Comparators
Quality Control: Learn More
The onsemi NCS2200SN1T1 is a single-element, general-purpose comparator from the NCS2200 series. This device features complementary, rail-to-rail output and operates within a voltage supply range of 0.85V to 6V. With a maximum propagation delay of 1.1µs and a low quiescent current of 17µA, it is suitable for power-sensitive applications. Input bias current is a mere 1pA at 6V, and input offset voltage is specified at a maximum of 5mV at 6V. The component exhibits 70dB CMRR and 80dB PSRR. Hysteresis is 20mV. Packaged in a 5-TSOP (SOT-23-5 Thin) for surface mounting, this component is commonly utilized in industrial automation, consumer electronics, and portable devices. The NCS2200SN1T1 is supplied on tape and reel.
Additional Information
Series: NCS2200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Output Type | Complementary, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Single/Dual (±) | 0.85V ~ 6V |
| Supplier Device Package | 5-TSOP |
| Propagation Delay (Max) | 1.1µs |
| Current - Quiescent (Max) | 17µA |
| Voltage - Input Offset (Max) | 5mV @ 6V |
| Current - Input Bias (Max) | 1pA @ 6V |
| Current - Output (Typ) | - |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Hysteresis | 20mV |
Request a Quote
Clients Also Buy

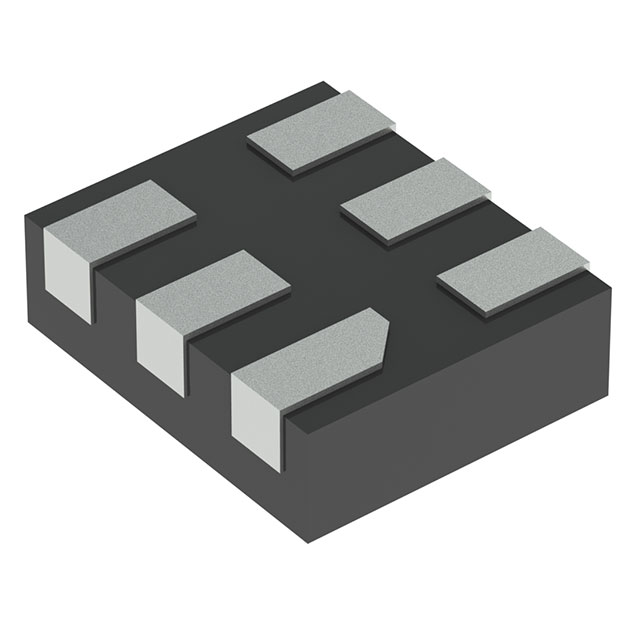

NCS2200AMUT1G
