MDNCV2200AMUTBG
IC COMPARATOR 1 GEN PUR 6UDFNManufacturer: onsemi
Categories: Comparators
Quality Control: Learn More

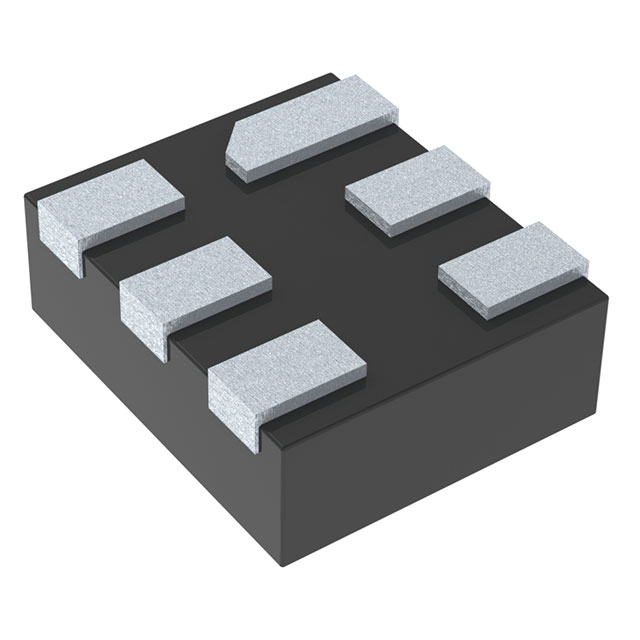

The onsemi MDNCV2200AMUTBG is a single-element, general-purpose comparator featuring rail-to-rail output. This component is housed in a compact 6-UDFN (1.2x1) package, suitable for surface mount applications. It operates across a wide supply voltage range of 0.85V to 6V. Key electrical specifications include a low input bias current of 1pA at 6V and a quiescent current of a maximum 15µA. The comparator exhibits typical CMRR of 70dB and PSRR of 80dB, with a maximum propagation delay of 750ns. It finds application in various industrial and consumer electronics markets where precise voltage comparison is critical. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 0.85V ~ 6V |
| Supplier Device Package | 6-UDFN (1.2x1) |
| Propagation Delay (Max) | 750ns |
| Current - Quiescent (Max) | 15µA |
| Voltage - Input Offset (Max) | 5mV @ 6V |
| Current - Input Bias (Max) | 1pA @ 6V |
| Current - Output (Typ) | 60mA @ 6V |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
| Hysteresis | 20mV |
Request a Quote
