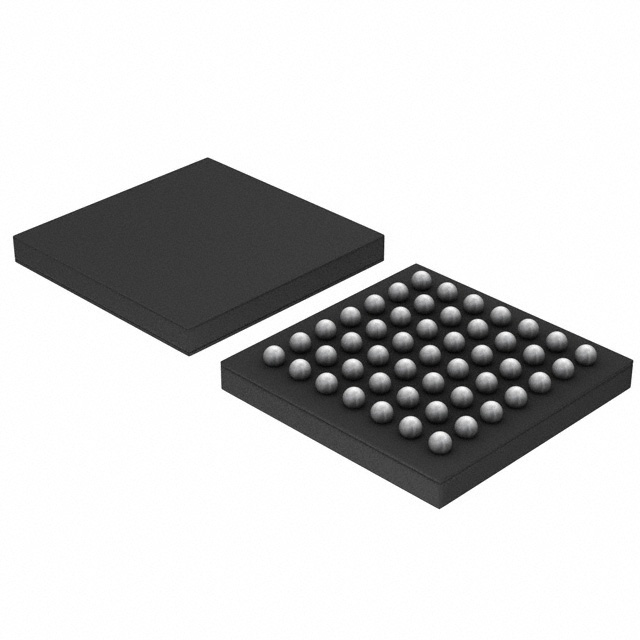

NBSG111BAR2
IC CLK BUFFER 2:10 6GHZ 49FCBGAManufacturer: onsemi
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The onsemi NBSG111BAR2 is a high-performance clock fanout buffer designed for demanding applications. This device features a 2:10 input-to-output ratio and supports a maximum frequency of 6 GHz, making it suitable for high-speed data transmission and signal distribution. It accepts a wide range of input signal types, including CML, ECL, LVCMOS, LVDS, LVTTL, NECL, and PECL, and provides RSECL, RSNECL, and RSPECL outputs. The NBSG111BAR2 is packaged in a 49-FCBGA (8x8) surface-mount format and operates within a temperature range of -40°C to 70°C. This buffer is commonly utilized in telecommunications, networking infrastructure, and high-frequency test and measurement equipment. The voltage supply range is 2.375V to 3.465V, and it is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 49-LFBGA, FCBGA |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | RSECL, RSNECL, RSPECL |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Input | CML, ECL, LVCMOS, LVDS, LVTTL, NECL, PECL |
| Operating Temperature | -40°C ~ 70°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Ratio - Input:Output | 2:10 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 49-FCBGA (8x8) |
| Frequency - Max | 6 GHz |
