QLA694B2H
LED CBI 3MM BI-LVL RED RAManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

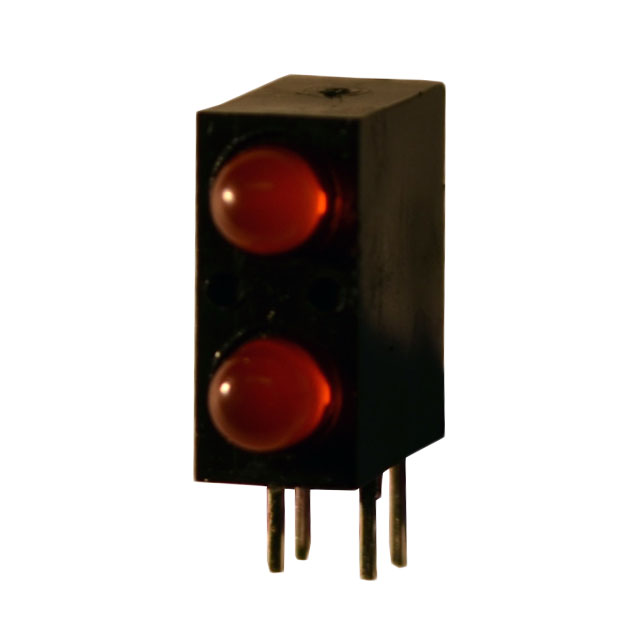

onsemi QLA694B2H is a dual-element, red LED circuit board indicator. This component features two high-efficiency red LEDs in a diffused, tinted, round with domed top lens configuration, each with a 3mm (T-1) diameter. Designed for right-angle mounting via through-hole technology, it operates at a forward voltage of 2.1V and a nominal forward current of 10mA, delivering a typical luminous intensity of 1.4mcd per element. This indicator is commonly utilized in industrial control, automotive, and consumer electronics applications requiring clear visual feedback. The QLA694B2H is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 2) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 1.4mcd |
| Configuration | 2 High |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | - |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
