MV54173
LED LGT BAR 12.7X6.35MM GRNManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

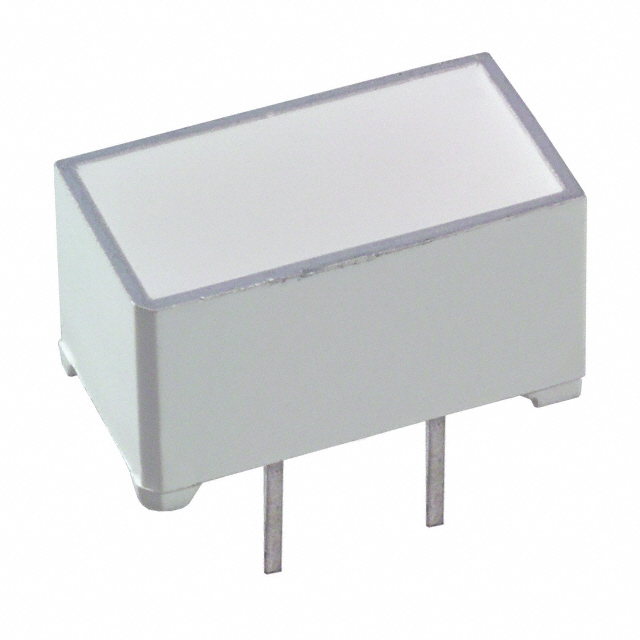

The onsemi MV54173 is a single, green LED circuit board indicator designed for through-hole mounting. This component features a rectangular bar lens with a flat top, measuring 12.70mm x 6.35mm, providing a distinct visual indicator. Operating at a forward voltage of 2.2V and a continuous forward current of 30mA, it delivers a typical millicandela rating of 4.5mcd with a broad 120° viewing angle. The peak wavelength for this green LED is 562nm. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment for status indication and panel illumination. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Current | 30mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 4.5mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | 120° |
| Lens Type | - |
| Wavelength - Peak | 562nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 12.70mm x 6.35mm |
