MV53173
LED LGT BAR 12.7X6.35MM YLWManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

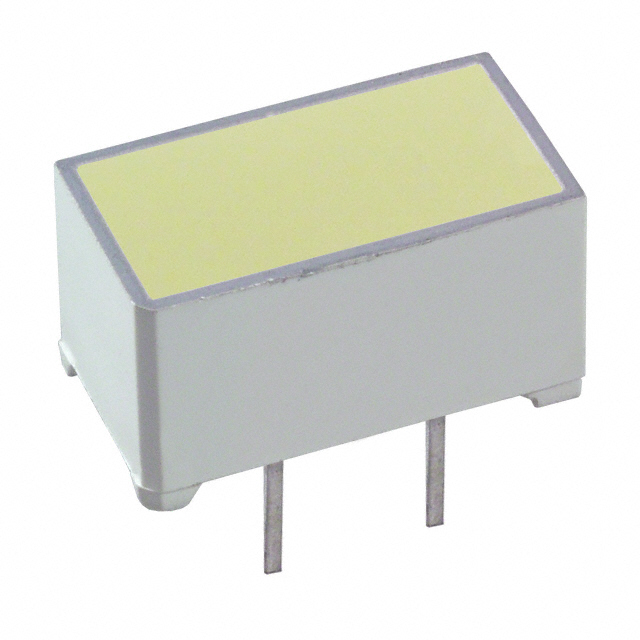

The onsemi MV53173 is a single, yellow LED bar indicator designed for through-hole mounting. This SIP (Single In-line Package) component features a rectangular, flat-top lens measuring 12.70mm x 6.35mm. It operates with a forward voltage of 2V and a typical current of 20mA, delivering a millicandela rating of 4.5mcd at a peak wavelength of 585nm. This component is commonly utilized in industrial control systems, consumer electronics, and automotive applications requiring clear visual status indication. The MV53173 is supplied in trays for efficient manufacturing integration.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Current | 20mA |
| Color | Yellow |
| Voltage Rating | 2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 4.5mcd |
| Configuration | Bar - Single, SIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 585nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 12.70mm x 6.35mm |
