HLMP47009MP8A
LED CBI 5MM QUAD RED RAManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
onsemi HLMP-40xx series, part number HLMP47009MP8A, is a quad, circuit board indicator featuring four red LEDs. Each LED is diffused and tinted with a round, domed top lens measuring 5mm (T-1 3/4). The component operates at a voltage rating of 1.8V and a typical current of 2mA, with a peak wavelength of 635nm and a millicandela rating of 2mcd. Designed for through-hole mounting with a right-angle orientation, this indicator offers a 50° viewing angle. It is commonly utilized in industrial automation, consumer electronics, and medical equipment. This component is supplied in bulk packaging.
Additional Information
Series: HLMP-40xxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 2mA |
| Color | Red (x 4) |
| Voltage Rating | 1.8V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 2mcd |
| Configuration | 4 Wide |
| Viewing Angle | 50° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy

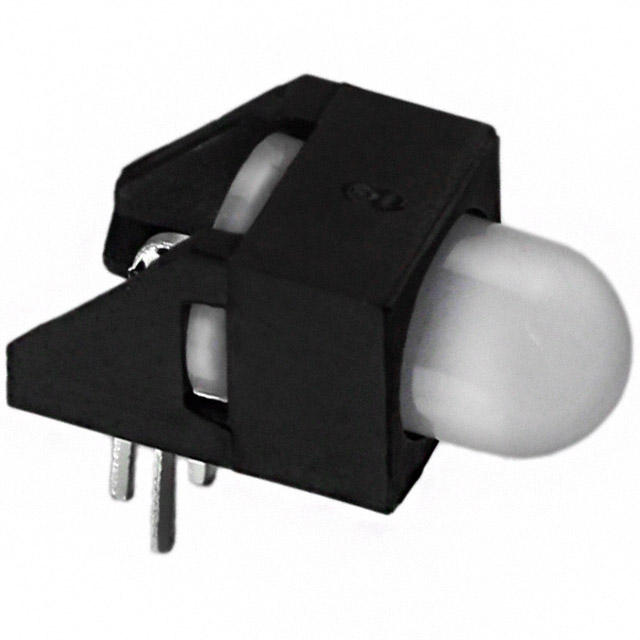

HLMP-4000#010
