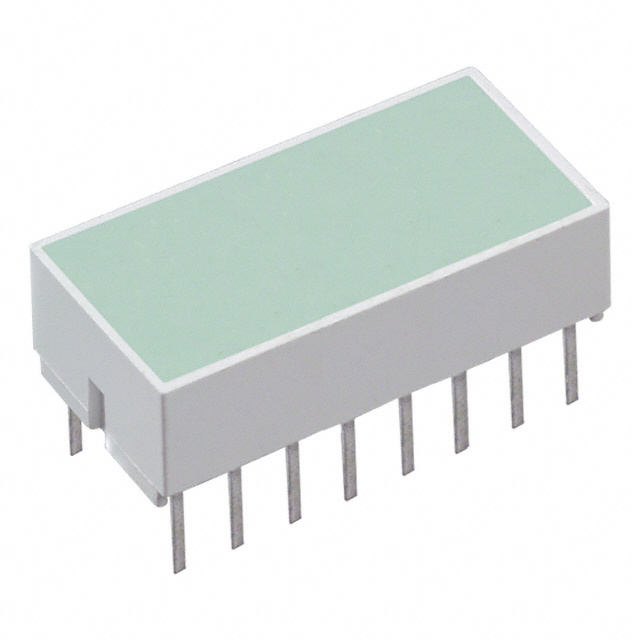

HLMP2885
LED LGT BAR 19.05X8.89MM GRNManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
onsemi HLMP2885 is a green LED circuit board indicator, featuring a single bar configuration within a DIP package. This through-hole component is designed for reliable optical signaling in applications requiring clear visual feedback. It operates with a forward voltage of 2.2V and a continuous forward current of 90mA, delivering a typical luminous intensity of 100mcd. The rectangular lens, measuring 19.05mm x 8.89mm with a flat top, provides a distinct visual presence. The peak wavelength for this green LED is 565nm. This component is commonly utilized in industrial control systems, consumer electronics, and medical equipment where robust indicator functionality is critical. Supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 90mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 100mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.05mm x 8.89mm |
