HLMP2685
LED LGT BAR 19.05X8.89MM REDManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

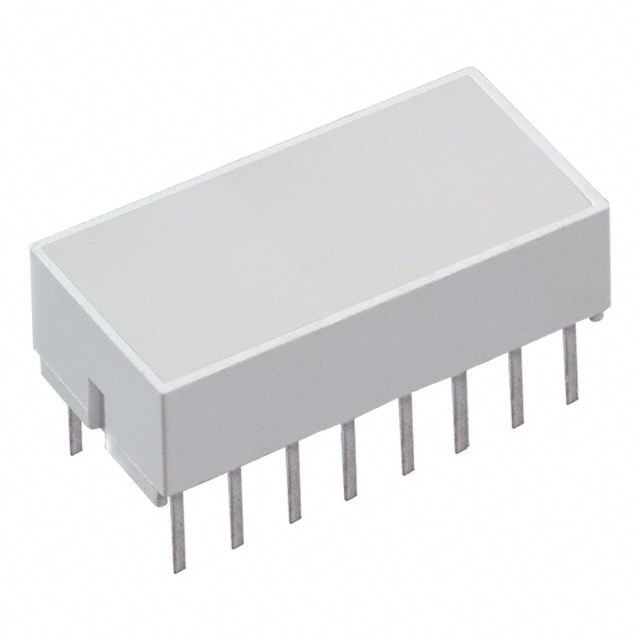

The onsemi HLMP2685 is a single, red LED bar graph indicator designed for through-hole mounting on printed circuit boards. This electronic component features a rectangular, flat-top lens measuring 19.05mm x 8.89mm, providing a clear visual output. Operating at a forward voltage of 2V and a current of 90mA, it achieves a typical luminous intensity of 80mcd at a peak wavelength of 635nm. The HLMP2685 is packaged in a tube and is commonly utilized in industrial control systems, medical equipment, and consumer electronics where robust visual feedback is required. Its DIP configuration simplifies integration into standard PCB assembly processes.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 90mA |
| Color | Red |
| Voltage Rating | 2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 80mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.05mm x 8.89mm |
