HLMP2655
LED LGT BAR 8.89MM RED 4LED DIPManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

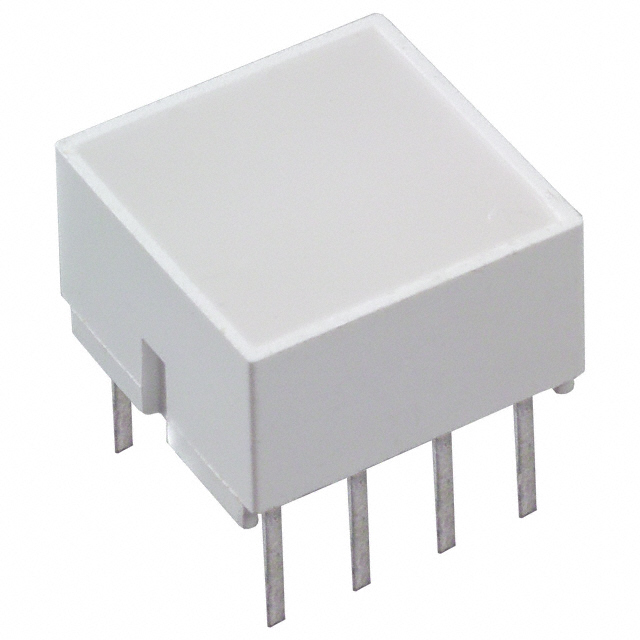

The onsemi HLMP2655 is an 8.89mm red LED bar graph indicator designed for through-hole mounting. This component features a single bar configuration with four red LEDs, each rated for 2V and 90mA. The square lens with a flat top provides a distinct visual indication, with a typical millicandela rating of 45mcd and a peak wavelength of 635nm. Packaged in tubes, this electronic component is suitable for applications in industrial automation, consumer electronics, and instrumentation where clear visual status feedback is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 90mA |
| Color | Red |
| Voltage Rating | 2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 45mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Square with Flat Top |
| Lens Size | 8.89mm |
