HLMP2550
LED LGT BAR 19.05X3.81MM GRNManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

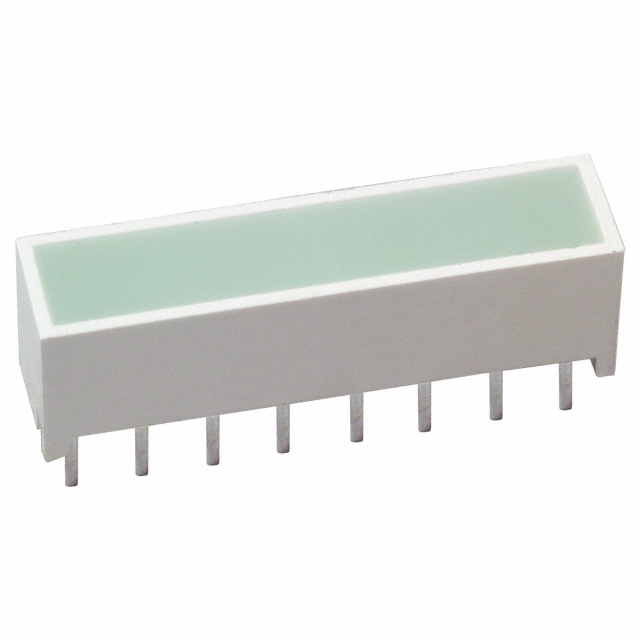

onsemi HLMP2550 is a single, through-hole LED bar graph indicator presented in a Single In-line Package (SIP). This component features a green light-emitting diode with a peak wavelength of 565nm, providing a typical luminous intensity of 50mcd at a forward current of 90mA. The rectangular lens, measuring 19.05mm by 3.81mm with a flat top, is designed for clear visual indication. Operating at a forward voltage of 2.2V, this component is commonly utilized in industrial control panels, instrumentation, and automotive applications where robust visual feedback is essential. The HLMP2550 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 90mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 50mcd |
| Configuration | Bar - Single, SIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.05mm x 3.81mm |
