HLMP2450
LED LGT BAR 19.05X3.81MM YL SIPManufacturer: onsemi
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

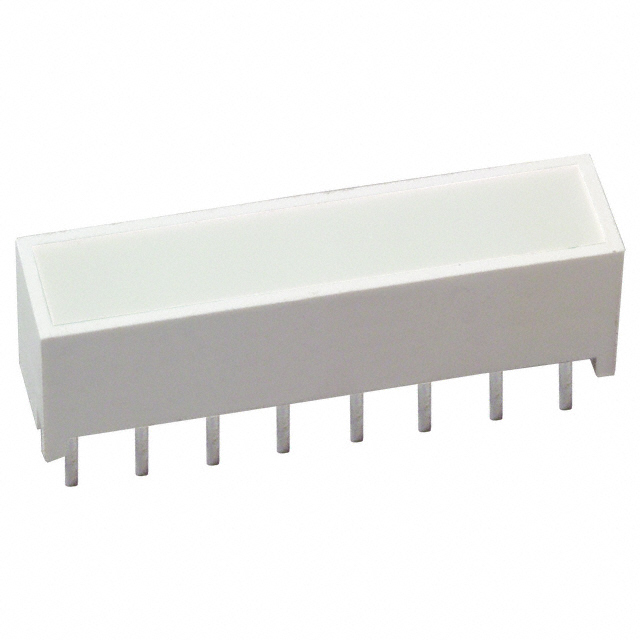

onsemi HLMP2450 is a through-hole mounted LED bar graph indicator. This yellow component features a single bar configuration within a SIP package, designed for direct PCB integration. With a forward voltage of 2.1V and a typical operating current of 60mA, it offers a peak wavelength of 583nm and a millicandela rating of 38mcd. The rectangular lens measures 19.05mm x 3.81mm and has a flat top. This component is suitable for applications in industrial control, instrumentation, and consumer electronics where visual status indication is required. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 60mA |
| Color | Yellow |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 38mcd |
| Configuration | Bar - Single, SIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 583nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 19.05mm x 3.81mm |
