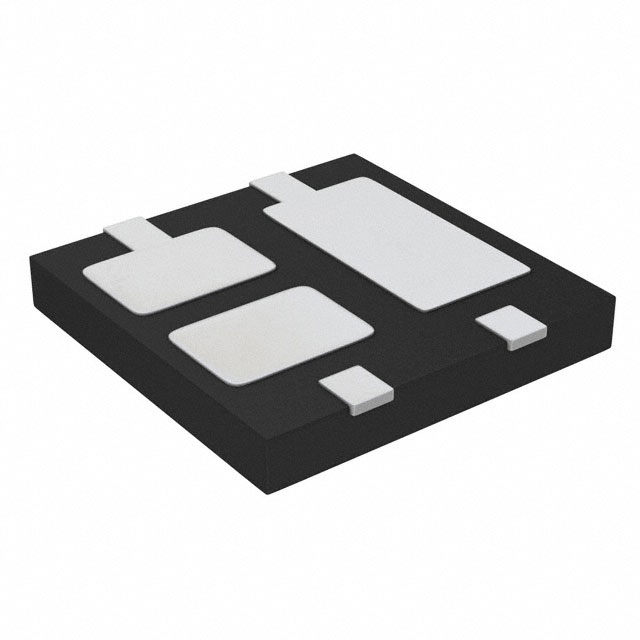

NSR2030QMUTAG
BRIDGE RECT 1PHASE 30V 2A 4UDFNManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Schottky 30 V Surface Mount 4-UDFN (3.5x3.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | 125°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | 4-UDFN (3.5x3.5) |
| Voltage - Peak Reverse (Max) | 30 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 30 V |
Request a Quote
