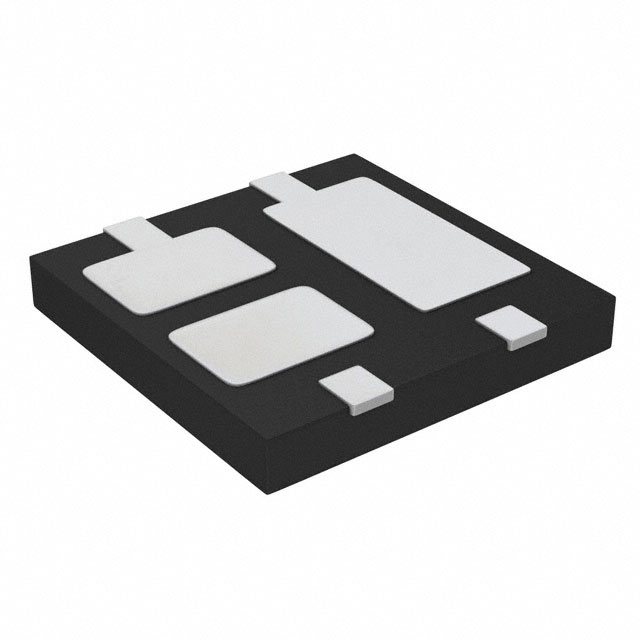

NSR1030QMUTWG
BRIDGE RECT 1PHASE 30V 1A 4UDFNManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
The onsemi NSR1030QMUTWG is a single-phase Schottky bridge rectifier designed for demanding applications. This component features a low forward voltage of 600 mV at 1 A and a reverse leakage of only 20 µA at 30 V, ensuring high efficiency and minimal power dissipation. With a maximum peak reverse voltage of 30 V and an average rectified current capability of 1 A, it is suitable for power supply rectification, battery charging circuits, and general-purpose switching applications. The device is housed in a compact 4-UDFN (3x3) exposed pad package, facilitating efficient thermal management and high-density board layouts. Its surface mount configuration and operation up to 125°C make it ideal for integration into automotive, industrial control, and consumer electronics systems. The NSR1030QMUTWG is provided in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | 125°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | 4-UDFN (3x3) |
| Voltage - Peak Reverse (Max) | 30 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 30 V |
