NMLU1210TWG
BRIDGE RECT 1PH 20V 3.2A 8UDFNManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More

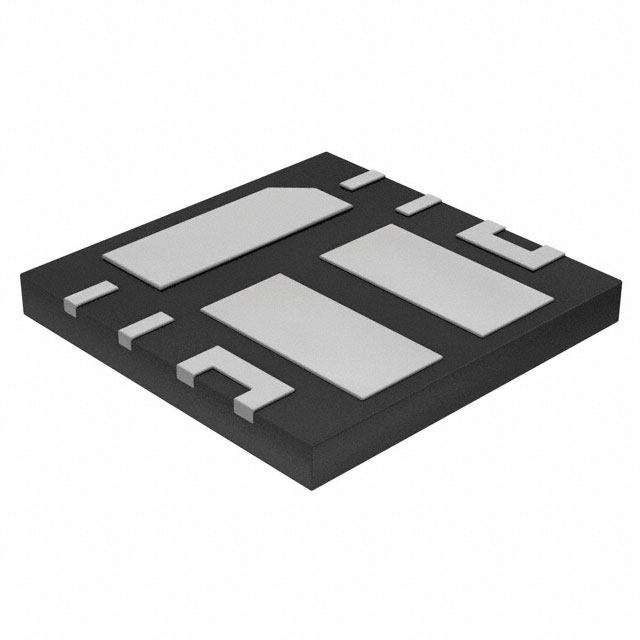

The onsemi NMLU1210TWG is a single-phase Schottky bridge rectifier designed for efficient power conversion. Featuring a 20V reverse voltage rating and an average rectified forward current of 3.2A, this component is built for demanding applications. Its low forward voltage drop of 450mV at 2A, coupled with a minimal reverse leakage current of 40µA at 20V, contributes to enhanced system efficiency. The device is supplied in an 8-UDFN (4x4) exposed pad package, suitable for surface mounting and optimized for thermal performance. This bridge rectifier finds application in power supplies, automotive electronics, and industrial control systems where high-frequency switching and compact form factors are critical. The NMLU1210TWG is delivered on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | 8-UDFN (4x4) |
| Voltage - Peak Reverse (Max) | 20 V |
| Current - Average Rectified (Io) | 3.2 A |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 20 V |
