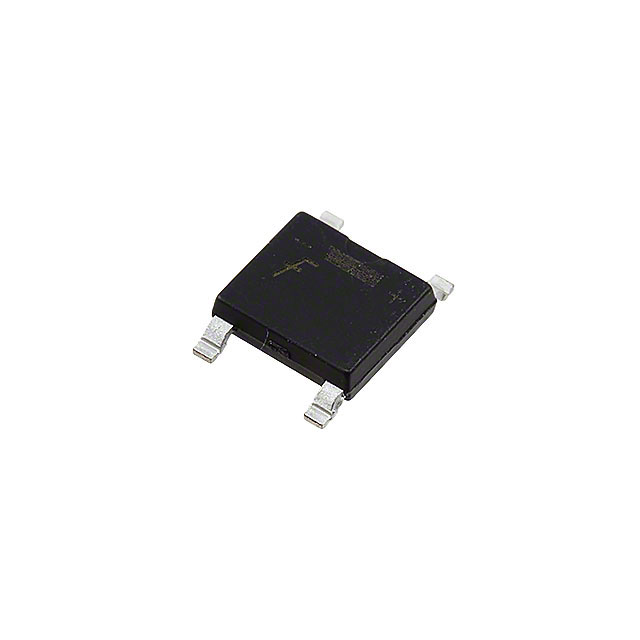

MDB10SV
BRIDGE RECT 1P 1KV 1.2A MICRODIPManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
The onsemi MDB10SV is a single-phase bridge rectifier from the MLVC series, designed for robust power rectification applications. This surface mount component, packaged in a 4-SMD Gull Wing (MicroDIP/SMD), offers a peak reverse voltage rating of 1 kV and an average rectified forward current capability of 1.2 A. With a low forward voltage drop of 1.015 V at its rated current, it minimizes power loss. The device exhibits a reverse leakage current of only 10 µA at 1000 V, ensuring efficient operation. Engineered for reliability, the MDB10SV operates across an extended temperature range of -55°C to 150°C (TJ). This component is suitable for use in industrial power supplies, automotive electronics, and consumer goods. It is supplied in tape and reel packaging.
Additional Information
Series: MLVCRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-MicroDIP/SMD |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1.2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.015 V @ 1.2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
