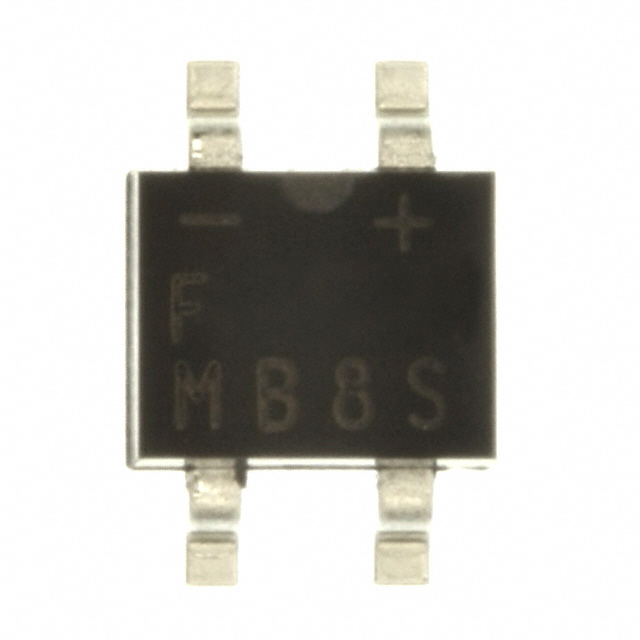

MB8S
BRIDGE 1-PH TO269AA/MINIDIL 800VManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Standard 800 V Surface Mount 4-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-269AA, 4-BESOP |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SOIC |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 500 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
