KBL08
BRIDGE RECT 1PHASE 800V 4A KBLManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More

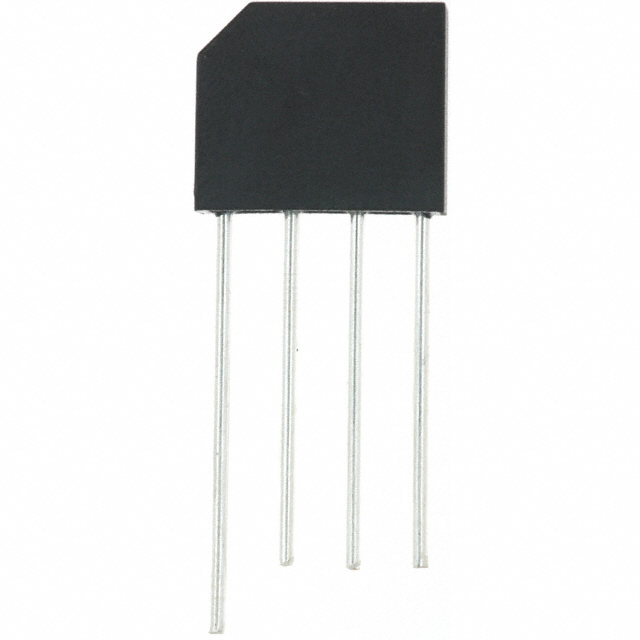

The onsemi KBL08 is a single-phase bridge rectifier designed for robust power applications. This through-hole component features a standard diode technology, offering a peak reverse voltage rating of 800V and an average rectified forward current handling capability of 4A. The forward voltage drop at maximum current is a maximum of 1.1V, with a low reverse leakage current of 5µA at 800V. Operating across a wide temperature range from -55°C to 150°C (TJ), the KBL08 is housed in a 4-SIP, KBL package, supplied in bulk. This rectifier is commonly utilized in power supplies, industrial motor controls, and consumer electronics where efficient rectification of AC to DC is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SIP, KBL |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | KBL |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
Request a Quote
