DFB20100F162
BRIDGE RECT 1PHASE 1V 20A TS6PManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More

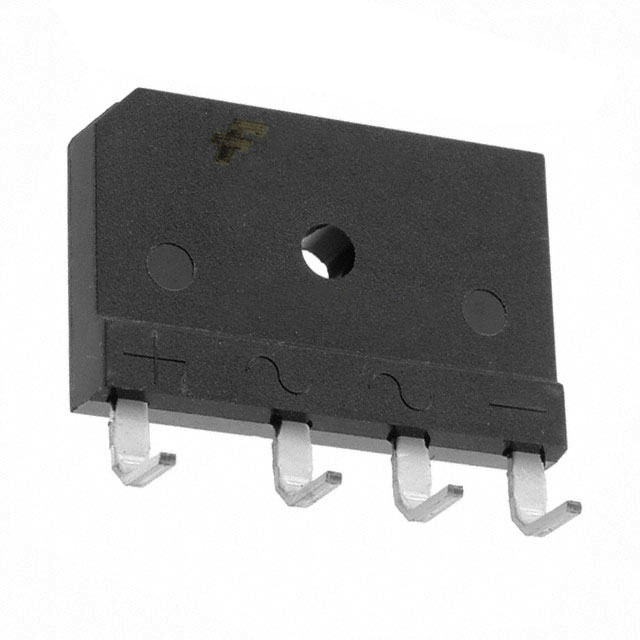

The onsemi DFB20100F162 is a single-phase bridge rectifier designed for high-voltage, high-current applications. This through-hole component, packaged in a TS-6P (4-SIP) configuration, offers a peak reverse voltage of 1 kV and a maximum forward voltage of 1.1 V at 20 A. It features a low reverse leakage current of 10 µA at 1000 V and an average rectified output current of 20 A. With an operating temperature range of -55°C to 150°C (TJ), the DFB20100F162 is suitable for demanding environments. This electronic component finds application in power supplies, industrial motor controls, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SIP, TS-6P |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | TS-6P |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 20 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
