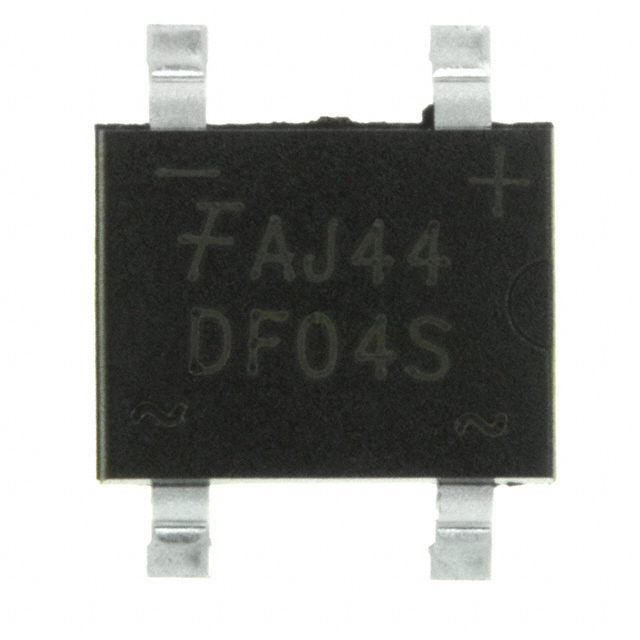

DF04S2
BRIDGE RECT 1PH 400KV 2A 4SDIPManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
onsemi DF04S2 is a single-phase bridge rectifier designed for efficient power conversion. This standard technology component offers a peak reverse voltage of 400 V and an average rectified forward current of 2 A. The forward voltage drop at 2 A is a maximum of 1.1 V, with a low reverse leakage current of 3 µA at 400 V. The device is housed in a 4-SDIP package with a gull-wing surface mount configuration, suitable for automated assembly processes. Operating across a wide temperature range of -55°C to 150°C (TJ), the DF04S2 is ideal for applications in consumer electronics and industrial power supplies. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SDIP |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 400 V |
