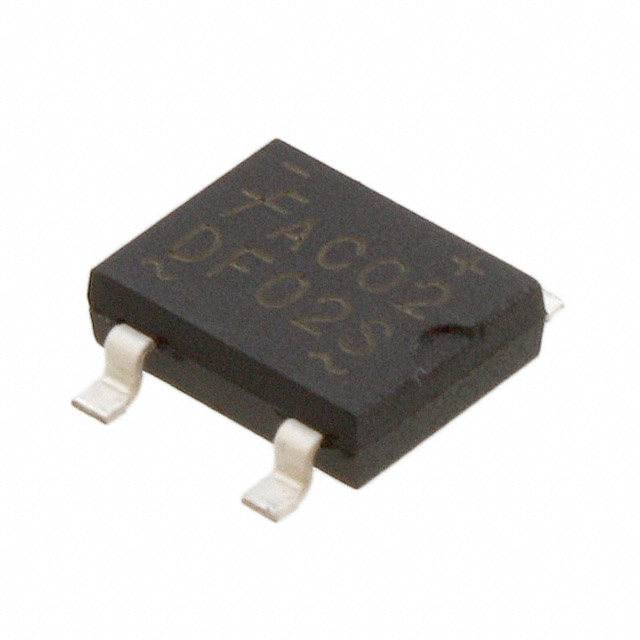

DF02S2
BRIDGE RECT 1PHASE 200V 2A 4SDIPManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
The onsemi DF02S2 is a single-phase bridge rectifier designed for efficient AC to DC conversion. This component features a standard diode technology with a peak reverse voltage rating of 200 V and an average rectified forward current handling capability of 2 A. The forward voltage drop is a maximum of 1.1 V at 1 A, and it exhibits a low reverse leakage current of 3 µA at 200 V.
Housed in a 4-SDIP package with gull wing leads, the DF02S2 is optimized for surface mounting. It operates reliably across a wide temperature range from -55°C to 150°C (TJ). This rectifier is suitable for applications in power supplies, consumer electronics, and industrial control systems where robust and efficient rectification is required. The component is supplied in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SDIP |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 200 V |
