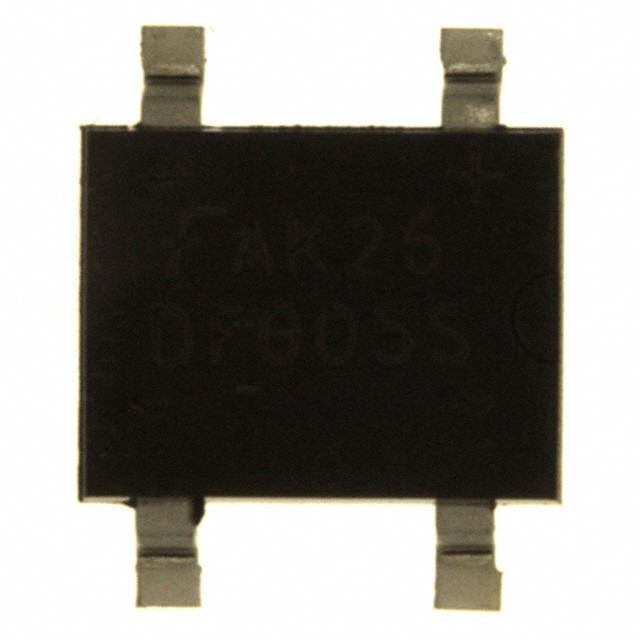

DF005S1
BRIDGE RECT 1PHASE 50V 1A 4SDIPManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
The onsemi DF005S1 is a single-phase bridge rectifier designed for standard rectification applications. This component features a maximum repetitive peak reverse voltage of 50V and a continuous average forward current of 1A. The forward voltage drop at 1A is a maximum of 1.1V, with a reverse leakage current of 3µA at 50V. Packaged in a 4-SDIP (Surface Mount Dual In-line Package) with gull-wing leads, this device is suitable for surface-mount assembly. The operating temperature range is -55°C to 150°C (TJ). This rectifier is commonly utilized in power supplies, consumer electronics, and industrial control systems. The DF005S1 is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SDIP |
| Voltage - Peak Reverse (Max) | 50 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 50 V |
