DBD10G-TM-E
BRIDGE RECT 1PHASE 600V 1AManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More

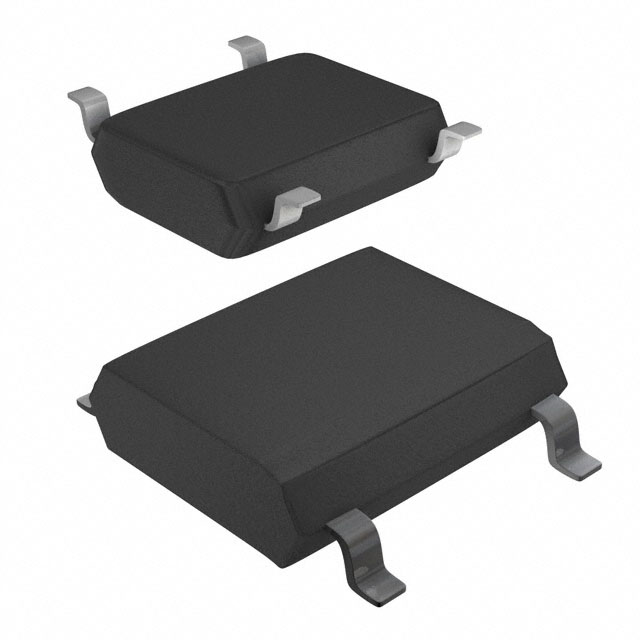

The onsemi DBD10G-TM-E is a single-phase bridge rectifier designed for robust power rectification applications. This component features a maximum repetitive peak reverse voltage of 600V and an average rectified output current of 1A. Its standard technology ensures reliable performance with a forward voltage drop of 1.05V at 500mA. The device exhibits a low reverse leakage current of 10 µA at its maximum reverse voltage. The DBD10G-TM-E is specified for operation up to a junction temperature of 150°C and is supplied in a compact 4-SMD, Gull Wing package, suitable for surface mount assembly. This component finds utility in various industrial power supply designs and general-purpose rectification circuits. It is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | - |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 500 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
