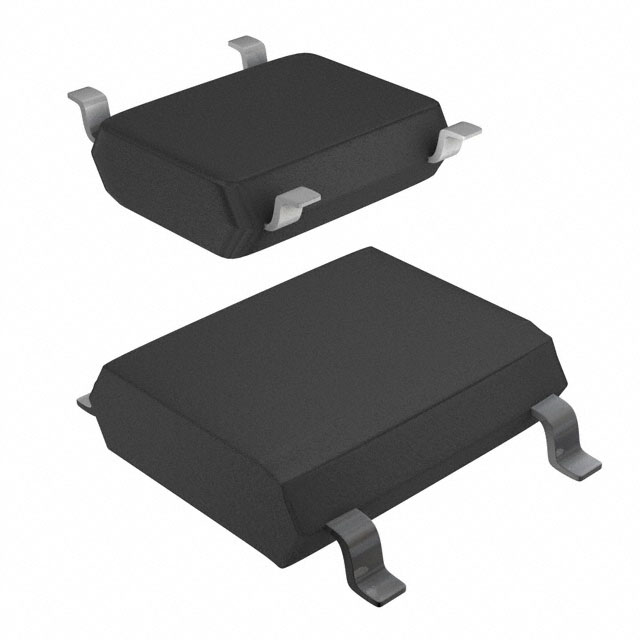

DBB08G-TM-E
BRIDGE RECT 1P 600V 800MA 4SMDManufacturer: onsemi
Categories: Bridge Rectifiers
Quality Control: Learn More
The onsemi DBB08G-TM-E is a single-phase bridge rectifier designed for robust power conversion applications. This component features a maximum repetitive peak reverse voltage of 600V and an average rectified forward current (Io) of 800mA. With a standard recovery technology, it exhibits a forward voltage drop (Vf) of 1.05V at 400mA and a low reverse leakage current of 10µA at 600V. The DBB08G-TM-E is housed in a compact 4-SMD, Gull Wing package for efficient surface mounting, operating reliably across a wide temperature range up to 150°C (TJ). Its construction makes it suitable for use in various industrial and consumer electronics where efficient AC to DC conversion is critical. This device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 4-SMD |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 800 mA |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
