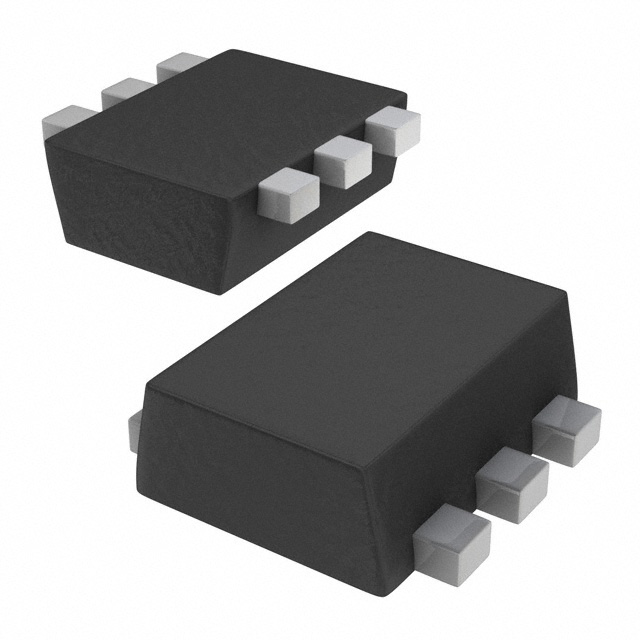

MCH6541-TL-E
TRANS NPN/PNP 30V 0.7A 6MCPHManufacturer: onsemi
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 30V 700mA 540MHZ, 520MHz 550mW Surface Mount 6-MCPH
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 550mW |
| Current - Collector (Ic) (Max) | 700mA |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Vce Saturation (Max) @ Ib, Ic | 190mV @ 10mA, 200mA / 220mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 50mA, 2V / 200 @ 10mA, 2V |
| Frequency - Transition | 540MHZ, 520MHz |
| Supplier Device Package | 6-MCPH |
