2SA1708T-YMH-AN
TRANS BIPO NMPManufacturer: onsemi
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
The onsemi 2SA1708T-YMH-AN is a bipolar transistor array featuring one NPN and one PNP transistor. This device offers a collector-emitter breakdown voltage of 100V and a maximum collector current of 1A. With a transition frequency of 120MHz and a power dissipation capability of 1W, it is suitable for applications requiring moderate switching speeds and power handling. The DC current gain (hFE) is a minimum of 140 at 100mA and 5V. The saturation voltage (Vce Sat) is a maximum of 400mV at 40mA and 400mA. Packaged in a 3-NMP (SC-71) configuration for through-hole mounting and supplied on tape and box, this component finds utility in various industrial and consumer electronics systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |

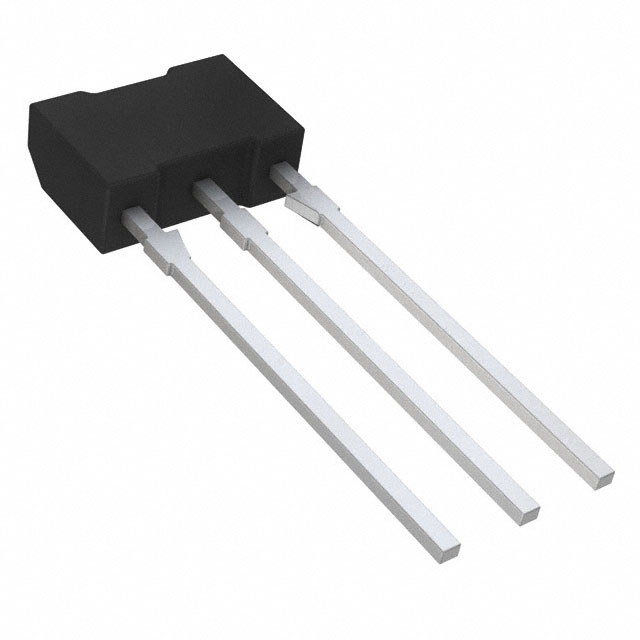

| Package / Case | SC-71 |
| Mounting Type | Through Hole |
| Transistor Type | 1 NPN, 1 PNP |
| Power - Max | 1W |
| Current - Collector (Ic) (Max) | 1A |
| Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 40mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 5V |
| Frequency - Transition | 120MHz |
| Supplier Device Package | 3-NMP |
