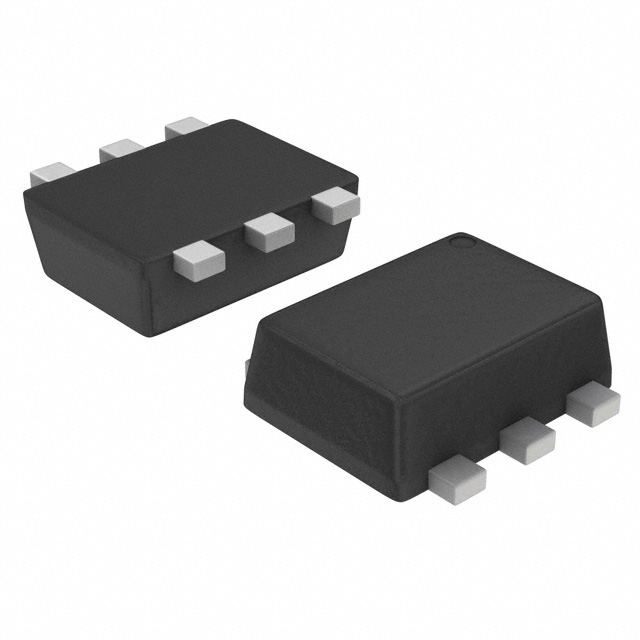

NSVBC144EDXV6T1G
DUAL NPN BIPOLAR DIGITAL TRANSISManufacturer: onsemi
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased 50V 100mA 500mW Surface Mount SOT-563
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN - Pre-Biased |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Frequency - Transition | - |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | SOT-563 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
