NSBA143ZDXV6T1
TRANS 2PNP PREBIAS 0.5W SOT563Manufacturer: onsemi
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More

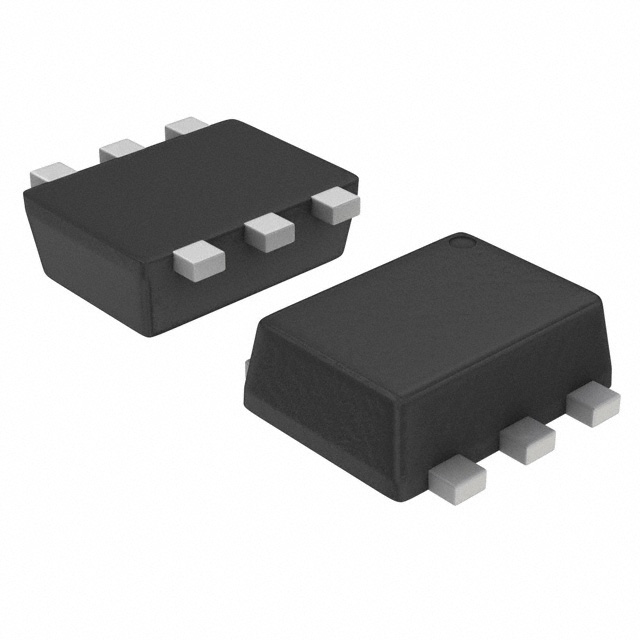

The onsemi NSBA143ZDXV6T1 is a dual, pre-biased PNP bipolar transistor array in a SOT-563 surface mount package. This component features a collector current of 100mA and a collector-emitter breakdown voltage of 50V. With a maximum power dissipation of 500mW, it includes integrated base resistors of 4.7kOhms (R1) and 47kOhms (R2). The Vce saturation is specified at 250mV (Max) @ 1mA, 10mA, and the DC current gain (hFE) is a minimum of 80 @ 5mA, 10V. This device is commonly utilized in industrial and consumer electronics applications requiring simplified circuit design and reduced component count for switching and amplification functions. The device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Frequency - Transition | - |
| Resistor - Base (R1) | 4.7kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | SOT-563 |
