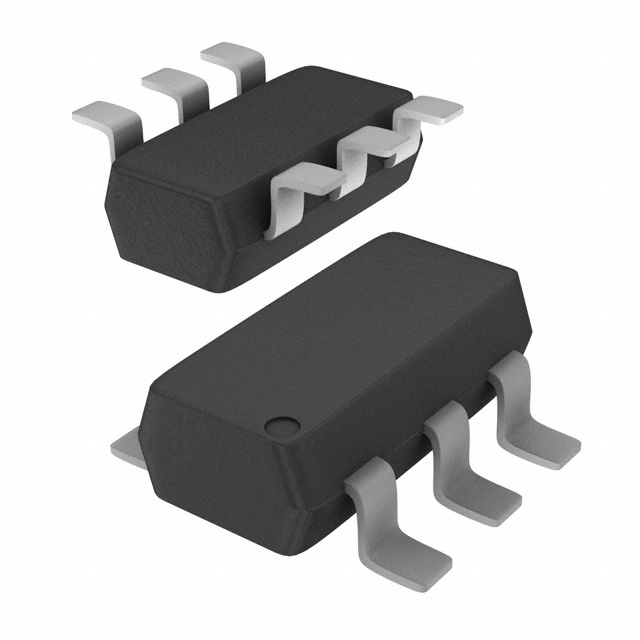

IMH20TR1G
TRANS PREBIAS 2NPN 15V SC74RManufacturer: onsemi
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 15V 600mA 300mW Surface Mount SC-74R
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 600mA |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| Vce Saturation (Max) @ Ib, Ic | 80mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 50mA, 5V |
| Frequency - Transition | - |
| Resistor - Base (R1) | 2.2kOhms |
| Resistor - Emitter Base (R2) | - |
| Supplier Device Package | SC-74R |
