NSVF4020SG4T1G
RF TRANS NPN 8V 16GHZ SC82FL/MCPManufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More

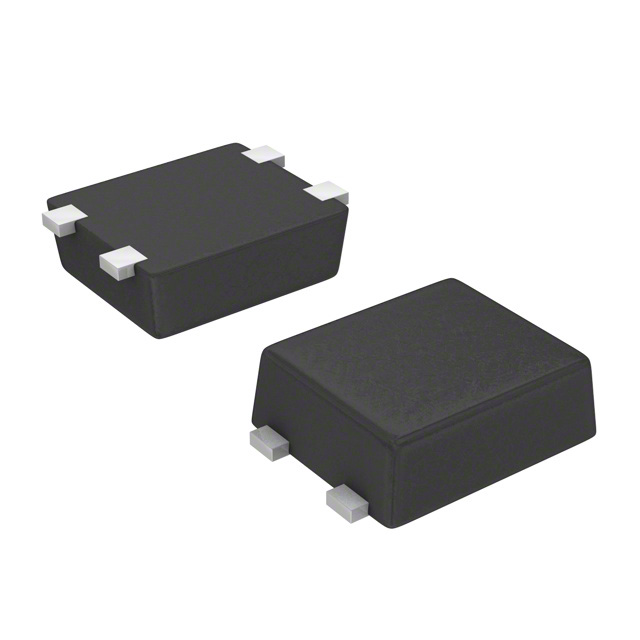

RF Transistor NPN 8V 150mA 16GHz 400mW Surface Mount SC-82FL/MCPH4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Gain | 17.5dB |
| Power - Max | 400mW |
| Current - Collector (Ic) (Max) | 150mA |
| Voltage - Collector Emitter Breakdown (Max) | 8V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 50mA, 5V |
| Frequency - Transition | 16GHz |
| Noise Figure (dB Typ @ f) | 1.8dB @ 1GHz |
| Supplier Device Package | SC-82FL/MCPH4 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
