NSVF4009SG4T1G
RF TRANS NPN 3.5V 25GHZ SC82FL/Manufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 3.5V 40mA 25GHz 120mW Surface Mount SC-82FL/MCPH4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

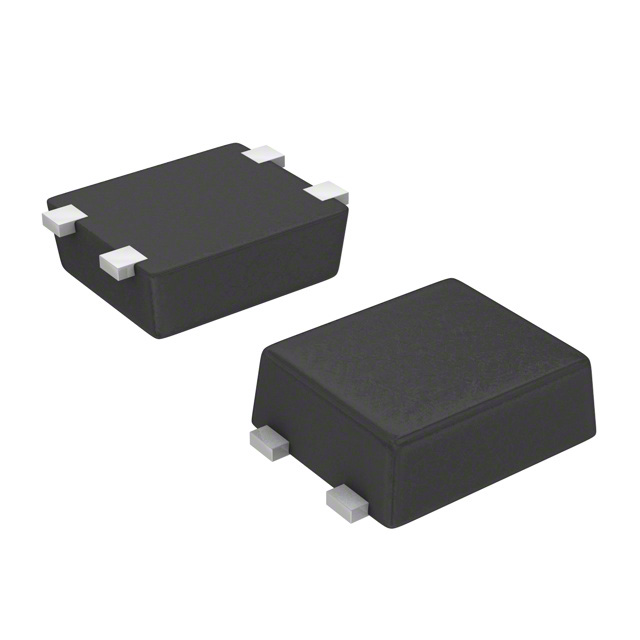

| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Gain | 17dB |
| Power - Max | 120mW |
| Current - Collector (Ic) (Max) | 40mA |
| Voltage - Collector Emitter Breakdown (Max) | 3.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 1V |
| Frequency - Transition | 25GHz |
| Noise Figure (dB Typ @ f) | 1.1dB @ 2GHz |
| Supplier Device Package | SC-82FL/MCPH4 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
