MSC2295-CT1
RF TRANS NPN 20V 150MHZ SC59Manufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More

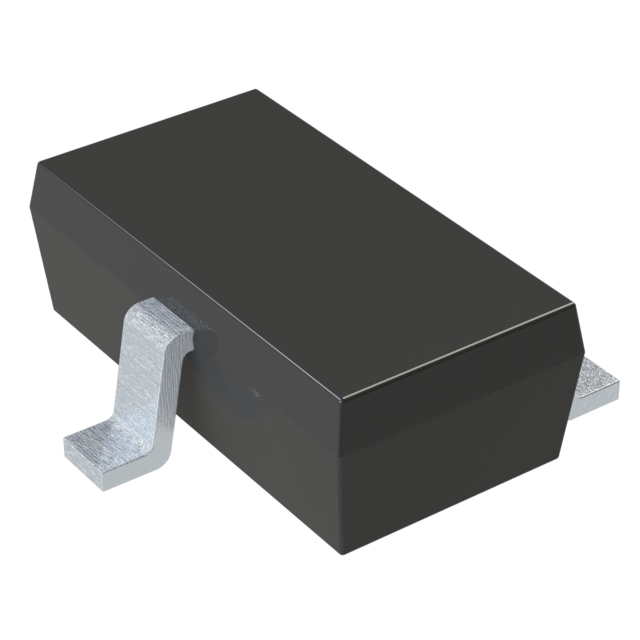

onsemi MSC2295-CT1 is an NPN bipolar RF transistor designed for high-frequency applications. This surface-mount component, housed in an SC-59 package (TO-236-3, SOT-23-3), offers a collector-emitter breakdown voltage of 20V and a maximum collector current of 30mA. It features a transition frequency of 150MHz and a minimum DC current gain (hFE) of 110 at 1mA and 10V. The device can dissipate up to 200mW of power and operates at an ambient temperature of up to 150°C (TJ). The MSC2295-CT1 is commonly utilized in consumer electronics, telecommunications infrastructure, and industrial control systems for RF amplification and switching tasks. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | - |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 30mA |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 1mA, 10V |
| Frequency - Transition | 150MHz |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | SC-59 |
