MCH4009-TL-H
RF TRANS NPN 3.5V 25GHZ 4MCPHManufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More

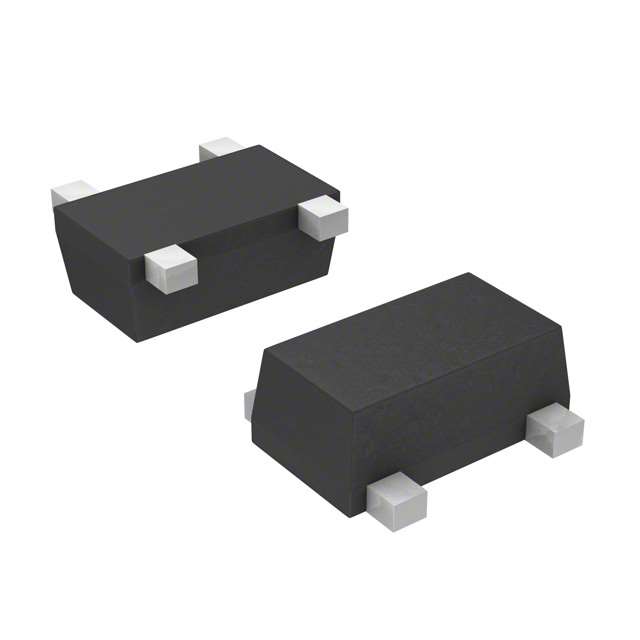

onsemi MCH4009-TL-H is an NPN bipolar RF transistor designed for high-frequency applications. This surface mount component, packaged in a 4-MCPH (SOT-343F) configuration on tape and reel, operates with a collector-emitter breakdown voltage of 3.5V and a maximum collector current of 40mA. It exhibits a transition frequency of 25GHz and a typical gain of 13.5dB. The device delivers a minimum DC current gain (hFE) of 50 at 5mA and 1V. With a noise figure of 1.1dB at 2GHz and a maximum power dissipation of 120mW, it is suitable for operation up to 150°C. This component finds utility in wireless communication systems, radar, and other high-frequency circuit designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-343F |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 13.5dB |
| Power - Max | 120mW |
| Current - Collector (Ic) (Max) | 40mA |
| Voltage - Collector Emitter Breakdown (Max) | 3.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 1V |
| Frequency - Transition | 25GHz |
| Noise Figure (dB Typ @ f) | 1.1dB @ 2GHz |
| Supplier Device Package | 4-MCPH |
