2SC6023-TR-E
NPN 35MA 3.5V FT=14.5GManufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More

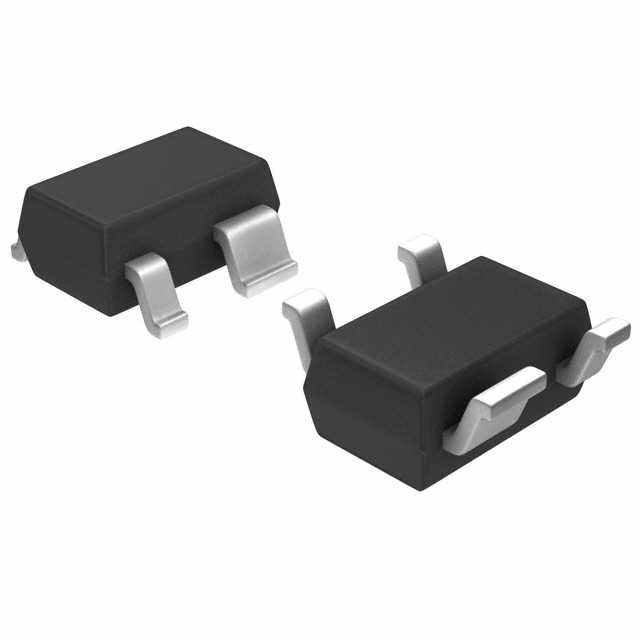

onsemi NPN RF Transistor, Part Number 2SC6023-TR-E. This bipolar transistor features a 3.5V collector-emitter breakdown voltage and a maximum collector current of 35mA. It offers a transition frequency of 14.5GHz and a typical gain range of 9.5dB to 11dB. The noise figure is rated at 1.2dB at 2GHz. Designed for surface mount applications, it is housed in a 4-MCP (SC-82A, SOT-343) package, consuming a maximum power of 120mW. The DC current gain (hFE) is a minimum of 80 at 15mA and 3V. This component is utilized in wireless communication systems and high-frequency signal amplification.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-82A, SOT-343 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Gain | 9.5dB ~ 11dB |
| Power - Max | 120mW |
| Current - Collector (Ic) (Max) | 35mA |
| Voltage - Collector Emitter Breakdown (Max) | 3.5V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 15mA, 3V |
| Frequency - Transition | 14.5GHz |
| Noise Figure (dB Typ @ f) | 1.2dB @ 2GHz |
| Supplier Device Package | 4-MCP |
