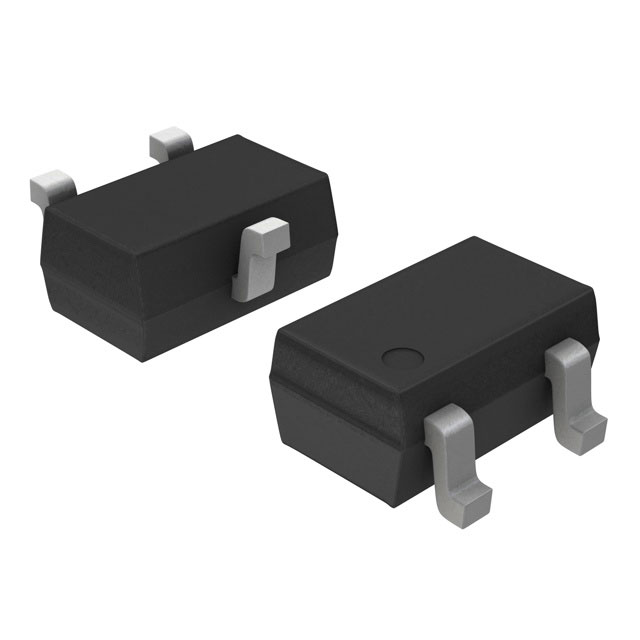

2SC5226A-4-TL-E
RF TRANS NPN 10V 7GHZ 3MCPManufacturer: onsemi
Categories: Bipolar RF Transistors
Quality Control: Learn More
RF Transistor NPN 10V 70mA 7GHz 150mW Surface Mount SC-70 / MCP3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | 12dB |
| Power - Max | 150mW |
| Current - Collector (Ic) (Max) | 70mA |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 20mA, 5V |
| Frequency - Transition | 7GHz |
| Noise Figure (dB Typ @ f) | 1dB @ 1GHz |
| Supplier Device Package | SC-70 / MCP3 |
