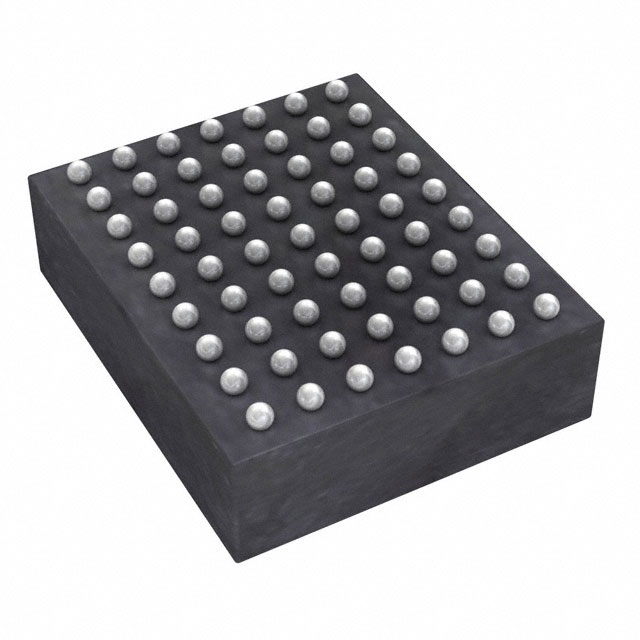

FAN54511APUCX
IC BATT CHG LI-ION 1CELL 63WLCSPManufacturer: onsemi
Categories: Battery Chargers
Quality Control: Learn More
The onsemi FAN54511APUCX is a highly integrated battery charger IC designed for single-cell Lithium Ion/Polymer battery applications. This device supports up to 3.2A maximum charge current and features programmable constant-current charging. Its robust design includes over-temperature fault protection. Communication and control are facilitated through I2C and USB interfaces. The FAN54511APUCX is supplied in a compact 63-UFBGA, WLCSP package, suitable for surface mounting. This component finds application in consumer electronics, portable devices, and power management systems requiring efficient and reliable battery charging solutions. The device operates with a maximum supply voltage of 13.25V and offers programmable timer features.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 63-UFBGA, WLCSP |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | I2C, USB |
| Operating Temperature | - |
| Battery Chemistry | Lithium Ion/Polymer |
| Supplier Device Package | 63-WLCSP |
| Charge Current - Max | 3.2A |
| Programmable Features | Timer |
| Fault Protection | Over Temperature |
| Voltage - Supply (Max) | 13.25V |
| Battery Pack Voltage | - |
| Current - Charging | Constant - Programmable |
