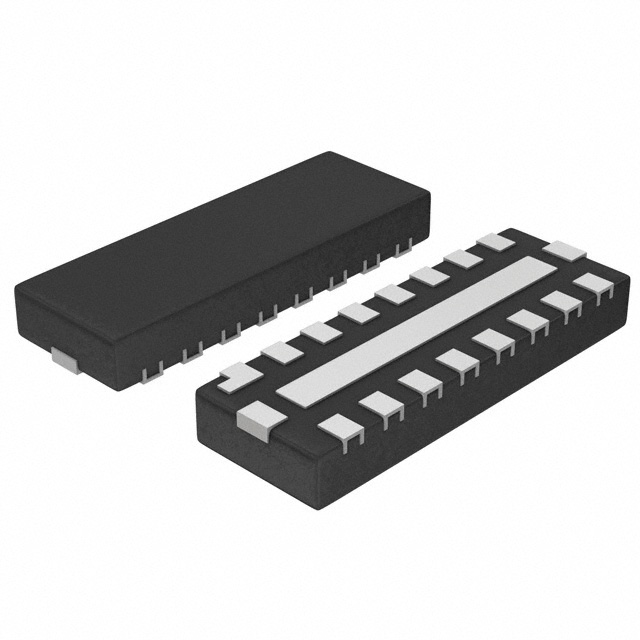

NLMD5820MUTAG

IC AUD AMP 2.65W CLASS D 16-UDFN

Manufacturer: onsemi

Categories: Audio Amplifiers

Quality Control: Learn More

onsemi NLMD5820MUTAG is a 1-channel Class D audio amplifier IC. This device offers 2.65W of output power into a 4 Ohm load. Designed for efficient operation, it features differential inputs and includes comprehensive protection mechanisms such as short-circuit and thermal protection, along with a shutdown feature. The NLMD5820MUTAG is housed in a compact 16-UDFN (3.2x2.4) package with an exposed pad, suitable for surface-mount applications. Its 2.5V to 5.5V supply voltage range makes it a versatile component for various audio systems. This amplifier is commonly utilized in consumer electronics and portable audio devices.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesDepop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
PackagingBulk
Package / Case16-UFDFN Exposed Pad
Output Type1-Channel (Mono)
Mounting TypeSurface Mount
TypeClass D
Voltage - Supply2.5V ~ 5.5V
Max Output Power x Channels @ Load2.65W x 1 @ 4Ohm
Supplier Device Package16-UDFN (3.2x2.4)
