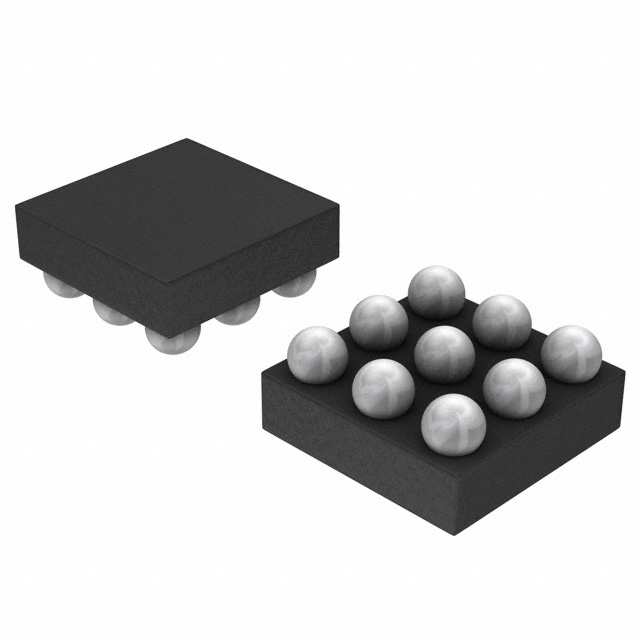

NCP2820FCT1G
IC AMP D MONO 2.65W 9FLIPCHIPManufacturer: onsemi
Categories: Audio Amplifiers
Quality Control: Learn More
The onsemi NCP2820FCT1G is a mono Class D audio amplifier IC designed for high-efficiency audio amplification. This single-channel device delivers up to 2.65W into a 4 Ohm load. Key features include differential inputs, integrated depop circuitry, and comprehensive protection against short-circuit and thermal events, along with a shutdown pin for power management. The amplifier operates from a 2.5V to 5.5V supply range. Its compact 9-FlipChip (1.45x1.45) package, specifically a 9-WFBGA, FCBGA, is suitable for surface mount applications. This component is frequently specified in portable electronics and consumer audio systems requiring robust and compact audio solutions. The operating temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-WFBGA, FCBGA |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 2.65W x 1 @ 4Ohm |
| Supplier Device Package | 9-FlipChip (1.45x1.45) |
