NCP2811AMTTXG
IC AMP STEREO HEADPHONE 12WQFNManufacturer: onsemi
Categories: Audio Amplifiers
Quality Control: Learn More
The onsemi NCP2811AMTTXG is a 2-channel Class AB stereo headphone amplifier IC. This component offers a maximum output power of 110mW into a 16-ohm load per channel, operating from a supply voltage range of 2.7V to 5V. Key features include integrated depop, short-circuit, and thermal protection, along with a shutdown pin for power management. The device is housed in a compact 12-WQFN (3x3) package with an exposed pad, suitable for surface mount applications. Its robust design and performance characteristics make it a suitable choice for consumer electronics, mobile devices, and personal audio systems. The NCP2811AMTTXG is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |

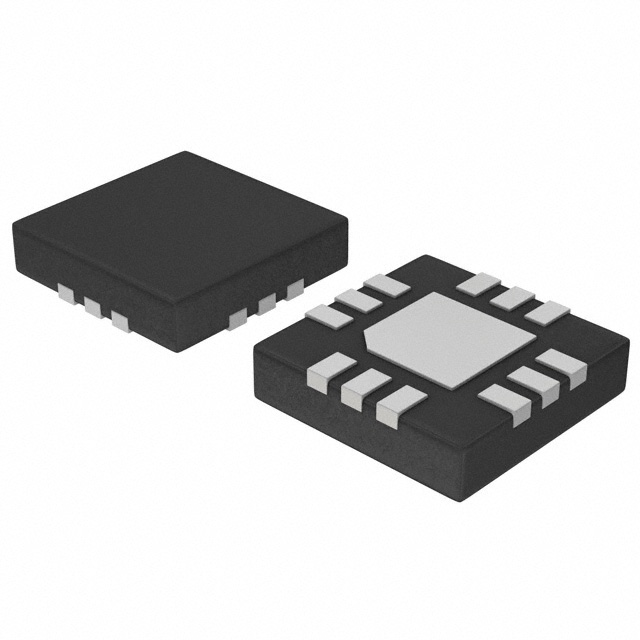

| Package / Case | 12-VFQFN Exposed Pad |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Voltage - Supply | 2.7V ~ 5V |
| Max Output Power x Channels @ Load | 110mW x 2 @ 16Ohm |
| Supplier Device Package | 12-WQFN (3x3) |
