LV4924VH-MPB-H
IC AMP CLASS D STER 15W 36HSSOPManufacturer: onsemi
Categories: Audio Amplifiers
Quality Control: Learn More
onsemi LV4924VH-MPB-H is a 2-channel Class D audio amplifier IC designed for high-fidelity audio reproduction. This device delivers 15W per channel into an 8-ohm load, supporting a wide supply voltage range from 9V to 20V. The amplifier features integrated mute, short-circuit, and thermal protection circuitry, along with a standby mode for power efficiency. Its 36-HSSOP package with an exposed pad and two heat tabs facilitates effective thermal management for surface-mount applications. The LV4924VH-MPB-H is suitable for use in consumer electronics, automotive audio systems, and professional audio equipment. The operating temperature range is -25°C to 75°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |

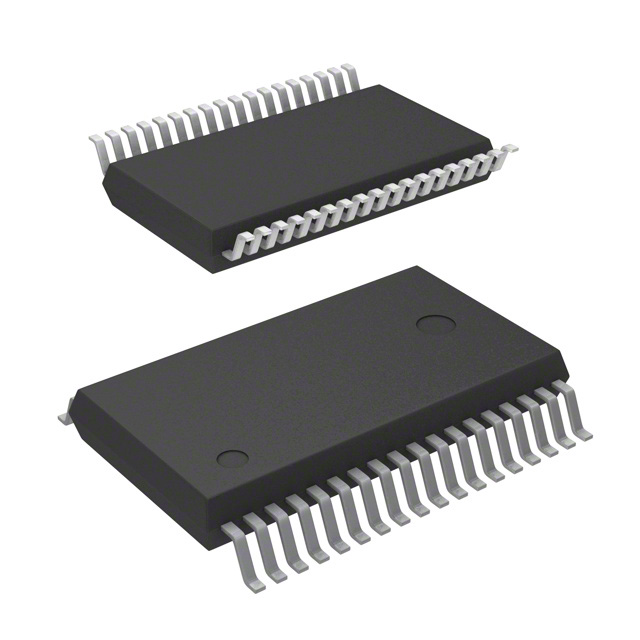

| Package / Case | 36-LSSOP (0.220"", 5.60mm Width) Exposed Pad + 2 Heat Tabs |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -25°C ~ 75°C (TA) |
| Voltage - Supply | 9V ~ 20V |
| Max Output Power x Channels @ Load | 15W x 2 @ 8Ohm |
| Supplier Device Package | 36-HSSOP |
