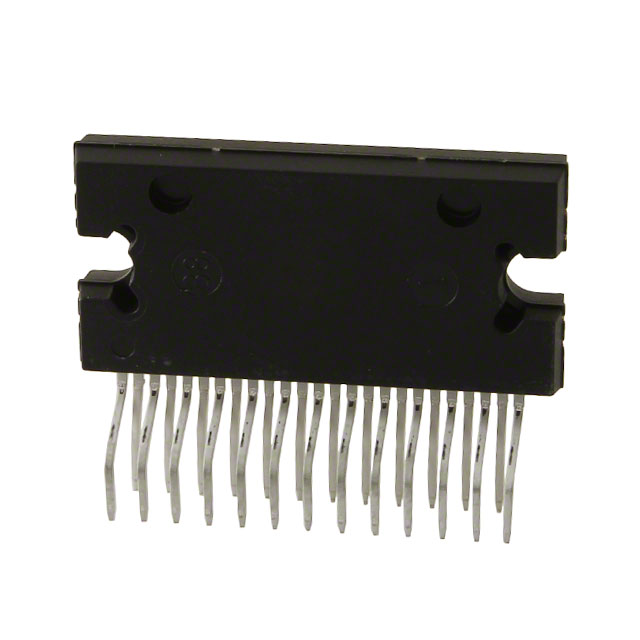

LV47004P-E
IC AMP CLASS AB QUAD 24W 25HZIPManufacturer: onsemi
Categories: Audio Amplifiers
Quality Control: Learn More
The onsemi LV47004P-E is a quad-channel Class AB audio amplifier IC designed for high-fidelity audio applications. This component delivers up to 24W per channel into a 4-ohm load, supporting supply voltages from 9V to 16V. Key features include integrated mute, short-circuit, and thermal protection, enhancing system reliability. The LV47004P-E is housed in a 25-HZIP package with exposed pad and formed leads, suitable for through-hole mounting. Its robust design and performance characteristics make it a suitable choice for automotive audio systems, home theater equipment, and professional audio solutions. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Mute, Short-Circuit and Thermal Protection |
| Packaging | Bulk |
| Package / Case | 25-SSIP Exposed Pad, Formed Leads |
| Output Type | 4-Channel (Quad) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 9V ~ 16V |
| Max Output Power x Channels @ Load | 24W x 4 @ 4Ohm |
| Supplier Device Package | 25-HZIP |
Request a Quote
