MC10H640FNG

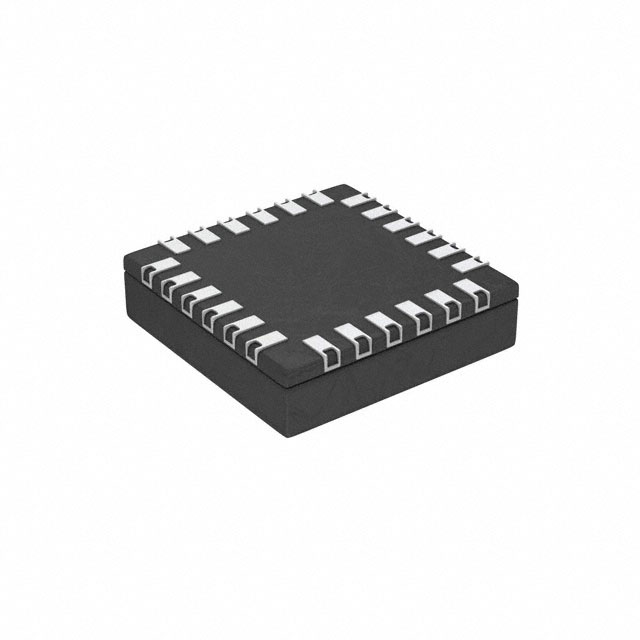

IC CLOCK DRIVER ECL-TTL 28-PLCCManufacturer: onsemi
Categories: Application Specific Clock/Timing
Quality Control: Learn More
onsemi MC10H640FNG is a clock buffer and multiplexer IC designed for high-speed clock distribution. This ECL-TTL component, part of the 10H series, features a 2:6 input-to-output ratio and a maximum frequency of 135MHz. The MC10H640FNG supports PECL and TTL inputs, with TTL outputs, and offers differential input/output capabilities. Its primary application is as a clock/frequency generator and fanout buffer for Motorola 68030 and 68040 microprocessors. The device operates within a voltage range of 4.75V to 5.25V and is supplied in a 28-PLCC (11.51x11.51) surface-mount package, suitable for operation between 0°C and 85°C. This component finds application in computing and telecommunications systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Output | TTL |
| Frequency - Max | 135MHz |
| Input | PECL, TTL |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Main Purpose | 68030, 68040 MPUs |
| Ratio - Input:Output | 2:6 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| PLL | No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
