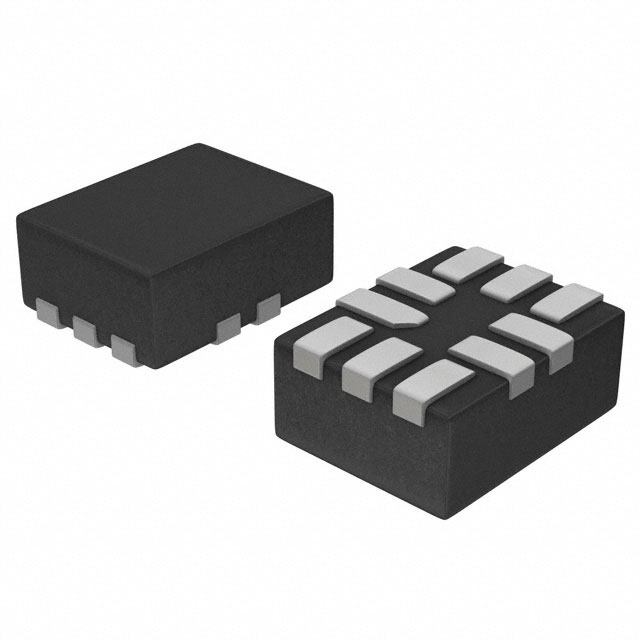

NS5A4684SMNTBG
IC SWITCH SPDTX2 400MOHM 10WQFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 2:1 400mOhm 10-WQFN (1.4x1.8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 400mOhm |
| -3db Bandwidth | 19MHz |
| Supplier Device Package | 10-WQFN (1.4x1.8) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 38pC |
| Crosstalk | -70dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 60pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 2 |
