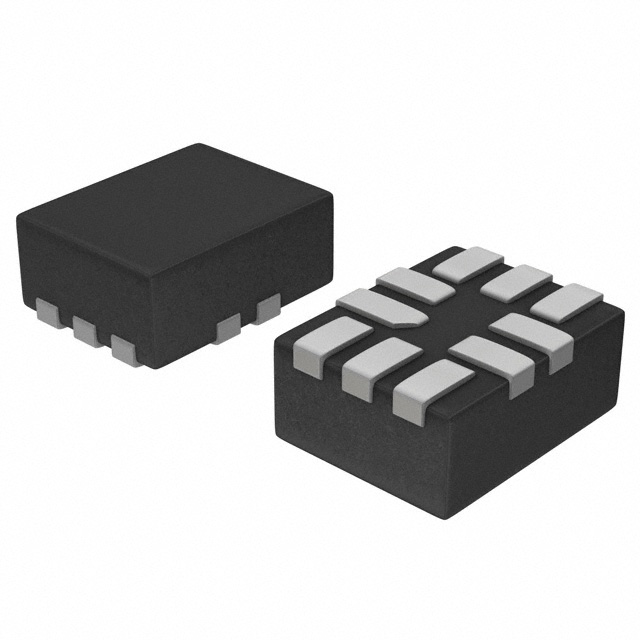

NLAS5223MNR2G
IC SWITCH SPDTX2 300MOHM 10WQFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The onsemi NLAS5223MNR2G is a dual 2:1 analog switch featuring two independent SPDT circuits. This component offers a low on-resistance of 300mOhm maximum, with channel-to-channel Ron matching specified at 50mOhm maximum. Designed for surface mount applications within a 10-WQFN (1.4x1.8) package, it operates over a single supply voltage range of 1.65V to 3.6V. The -3dB bandwidth is 17MHz, and charge injection is rated at 38pC. Crosstalk is specified at -70dB at 100kHz, with a maximum leakage current of 500nA when off. Typical switching times are 50ns for turn-on and 30ns for turn-off. This device is suitable for applications in consumer electronics and audio signal routing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 300mOhm |
| -3db Bandwidth | 17MHz |
| Supplier Device Package | 10-WQFN (1.4x1.8) |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 38pC |
| Crosstalk | -70dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 50mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 75pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 2 |
