NLAS5157MUTCG

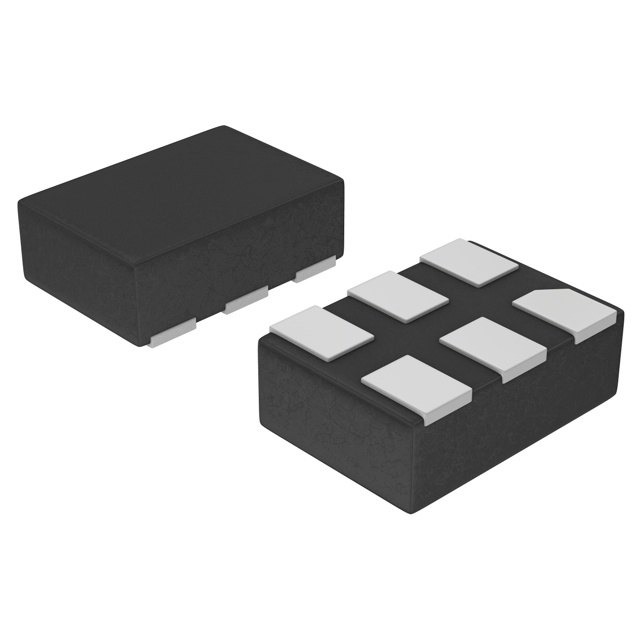

IC SWITCH SPDT X 1 500MOHM 6UDFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The onsemi NLAS5157MUTCG is a single-circuit, 2:1 multiplexer/demultiplexer featuring a 500mOhm on-state resistance. This SPDT switch operates with a single supply voltage range from 1.65V to 4.5V and exhibits a -3dB bandwidth of 36MHz. The device offers a typical channel-to-channel resistance matching of 80mOhm and a charge injection of 38pC. Leakage current (IS(off)) is specified at a maximum of 100nA, with channel capacitance (CS(off), CD(off)) at 47pF. Switching times are 40ns for turn-on and 25ns for turn-off. The NLAS5157MUTCG is housed in a 6-UDFN (1.45x1) package suitable for surface mounting and operates within an ambient temperature range of -40°C to 85°C. This component finds application in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 500mOhm |
| -3db Bandwidth | 36MHz |
| Supplier Device Package | 6-UDFN (1.45x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 38pC |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 80mOhm |
| Switch Time (Ton, Toff) (Max) | 40ns, 25ns |
| Channel Capacitance (CS(off), CD(off)) | 47pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
