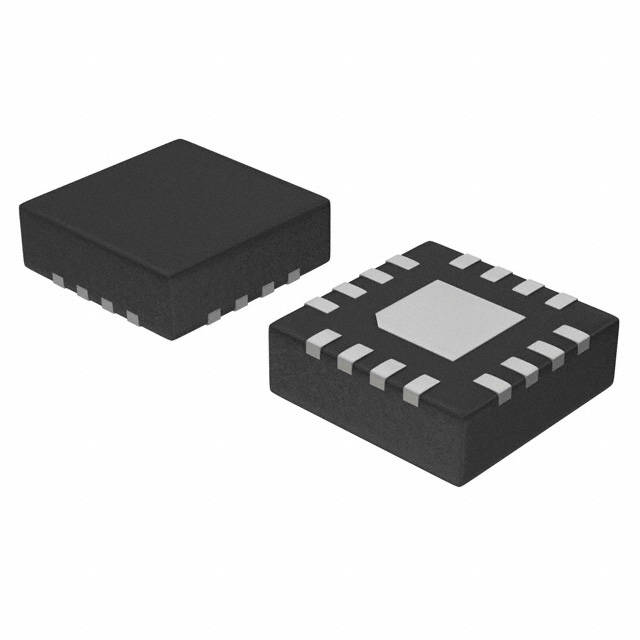

NLAS4783MN1R2G
IC SWITCH SPDT X 3 1OHM 16QFNManufacturer: onsemi
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The onsemi NLAS4783MN1R2G is a triple, 2:1 analog switch featuring a 1 Ohm maximum on-state resistance and a 400 mOhm maximum channel-to-channel matching. This device operates with a single supply voltage ranging from 1.65V to 4.5V and exhibits a -3dB bandwidth of 17MHz. Key performance metrics include a charge injection of 50pC and crosstalk of -62dB at 100kHz. The switch offers a maximum leakage current of 500nA when off and possesses a channel capacitance of 5pF. With a 27ns turn-on and 20ns turn-off time, the NLAS4783MN1R2G is suitable for applications in consumer electronics and communication systems. It is supplied in a 16-QFN (3x3) package and is available on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 1Ohm |
| -3db Bandwidth | 17MHz |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 50pC |
| Crosstalk | -62dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 400mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 27ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 3 |
